Ducato Conversion

Practical and functional conversion bases

An architecture which combines driveability, robustness and productivity

The Ducato has always been the favourite conversion vehicle of body fitters and coach builders.

Its robust structure allows you to load your heavy goods in total safety:

• a robust mechanical structure
• a double omega chassis
• maximum permitted axle loads: up to 2100 kg on the front axle and up to 2500 kg on the rear, segment topping values
• double leaf spring rear suspension to support any type of conversion specific rear suspension for every mission.

Featuring front-wheel drive

• a less complex mechanical structure, without propeller shaft or differential unit, for improved consumption levels and load capacity
• the driveability of a car
• reduced tare increases payload
• limited fuel consumption thanks to the lower weight and rolling resistance
• lower tyre costs – only 4 rather than 6 to be replaced (as wuold be the case in a vehicle with rear wheel drive with twin wheels)
• wider chassis– for increased stability – with the highest resistance index on the market
• easy to fit out and adjust the body size

Low load threshold

Offers a range of specific conversion solutions:

• bodywork socket
• rear lighting wiring set-up
• larger alternators
• larger batteries

larger track (1.98 m).

• 4 wheelbase options and a long wheelbase version with additional overhang.
• GVW options from 3000, 3300 and 3500 to 4000 and 4250

2 different mechanical structures, the Ducato and the Ducato Maxi with reinforced suspension and 16” wheels.

Chassis cab
GVW: 3000 to 3500 kg
Wheelbase: 3000, 3450, 3800, 4035, 4035 XL mm
External dimensions:
– Length: from 4908 to 6308 mm
– cabin height: 2254 mm
– front track width: 1810 mm
– rear track width: 1790 mm
Maximum body width: 2350 mm
Maximum permitted axle loads:
– Front axle: up to 1850 kg
– Rear axle: up to 2000 kg

Maxi Cab
GVW: 3500 to 4250 kg
Wheelbase: 3450, 3800, 4035, 4035 XL mm
External dimensions:
– length: from 5358 to 6308 mm
– cabin height: 2254 mm
– front track width: 1810 mm
– rear track width: 1790 mm
Maximum body width: 2350 mm
Maximum permitted axle loads:
– Front axle: 2100 kg
– Rear axle: 2500 kg

• 2 wheelbases, 3
• GVW options from 3000, 3300 and 3500 to 4000 and 4250
• 2 different mechanical structures, the Ducato and the Ducato Maxi with reinforced suspension and 16” wheels.
• up to 6/7 seats.

Front seats consisting of two single seats or a driver’s seat plus a two-seater bench.

Chassis Crew Cab
GVW: 3000 to 3500 kg
Wheelbase: 3450, 4035 mm
External dimensions:
– length: from 5338 and 5943 mm
– cabin height: 2254 mm
– front track width: 1810 mm
– rear track width: 1790 mm
Maximum body width: 2350 mm
Maximum permitted axle loads:
– Front axle: up to 1850 kg
– Rear axle: from 1900 to 2000 kg

Maxi Chassis Crew Cab
GVW: 3500 to 4250 kg
Wheelbase: 3450, 4035, 4035 XL mm
External dimensions:
– length: from 5358 to 6308 mm
– cabin height: 2254 mm
– front track width: 1810 mm
– rear track width: 1790 mm
Maximum body width: 2350 mm
Maximum permitted axle loads:
– Front axle: 2100 kg
– Rear axle: 2500 kg

For all those conversions which require lightness and flexibility combined with a reduced access threshold height.

• 4 wheelbases, 4
• Threshold only 53 cm from the ground.
• vehicle weight from 1580 to 1735 kg
• GVW options from 3000, 3300 and 3500 to 4000 and 4250

2 different mechanical structures, the Ducato and the Ducato Maxi with reinforced suspension and 16” wheels.

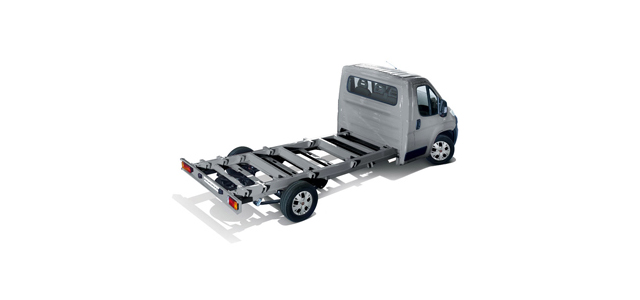

Chassis Cab with Platform
GVW: 3000 to 3500 kg
Wheelbase: 3000, 3450, 3800, 4035, 4035 XL mm
External dimensions:
– Length: from 4908 to 6308 mm
– cabin height: 2153 mm
– front track width: 1810 mm
– rear track width: 1790 mm
Maximum body width: 2350 mm
Maximum permitted axle loads:
– Front axle: from 1630 to 1850 kg
– Rear axle: from 1650 to 2000 kg

Chassis Cab with Maxi Platform
GVW: 3500 to 4250 kg
Wheelbase: 3450, 4035, 4035 XL mm
External dimensions:
– length: from 5358 to 6308 mm
– cabin height: 2153 mm
– front track width: 1810 mm
– rear track width: 1790 mm
Maximum body width: 2350 mm
Maximum permitted axle loads:
– Front axle: 2100 kg
– Rear axle: 2500 kg

The perfect base for any type of conversion, with customisable bodywork design, interiors and trim

• Supplied without seats, pillars and windscreen.
• 4 wheelbases, 5
• GVW options from 3300,3500 and 4000 to 4250

2 different mechanical structures, the Ducato and the Ducato Maxi, with 16” wheels and reinforced suspension.

Chassis Cowl
GVW: 3300 to 3500 kg
Wheelbase: 3000, 3450, 3800, 4035, 4035 XL mm
External dimensions
– Length: from 4885 to 6285 mm
– front track width: 1810 mm
– rear track width: 1790 mm
Maximum body width: 2350 mm
Maximum permitted axle loads:
– Front axle: from 1750 to 1850 kg
– Rear axle: from 1900 to 2000 kg

Maxi Chassis Cowl
GVW: 3500 to 4250 kg
Wheelbase: 3450, 3800, 4035, 4035 XL mm
External dimensions:
– length: from 5335 to 6285 mm
– front track width: 1810 mm
– rear track width: 1790 mm
Maximum body width: 2350 mm
Maximum permitted axle loads:
– Front axle: 2100 kg
– Rear axle: 2500 kg
